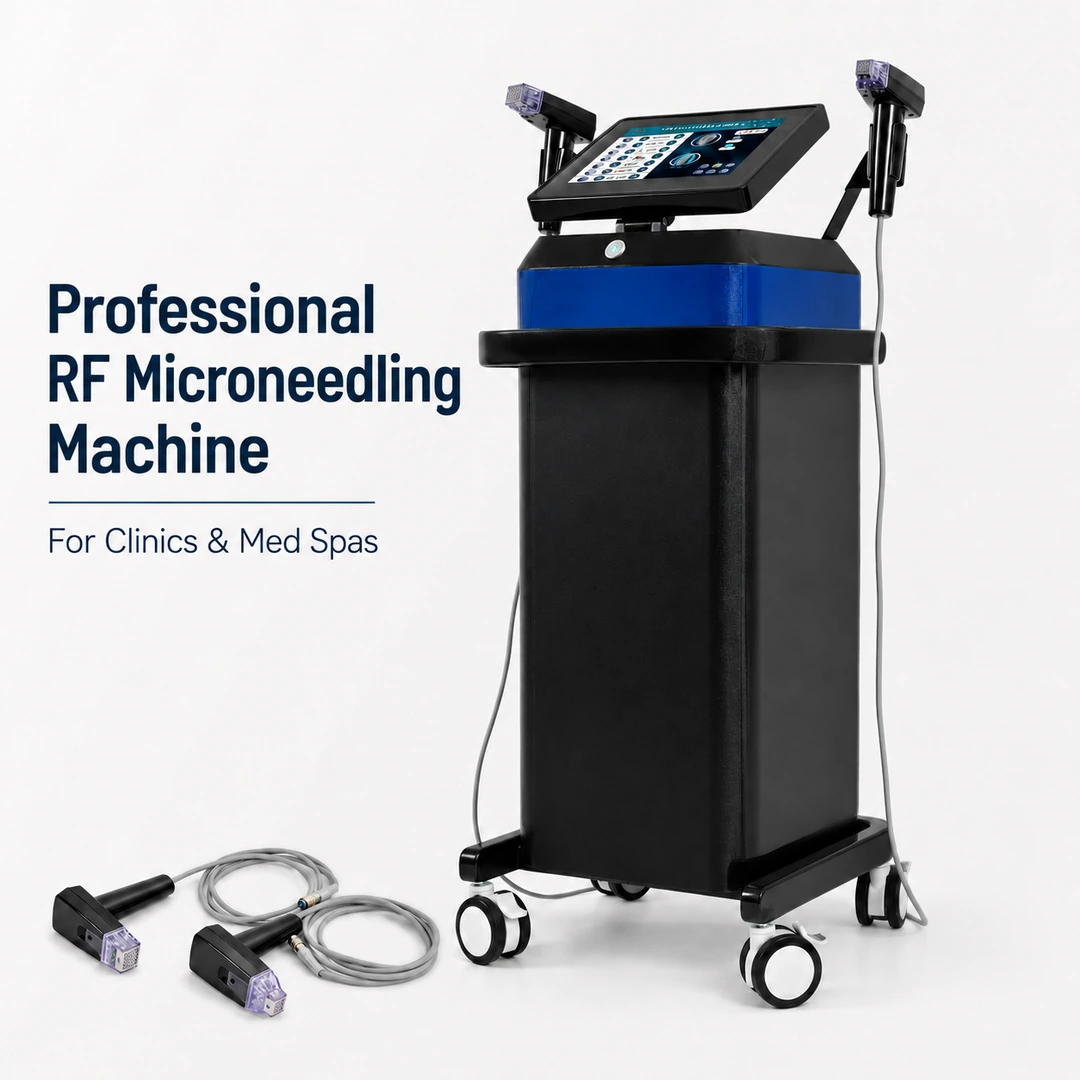

Short answer: An RF fractional microneedling machine is a professional aesthetic device that combines precisely controlled microneedle placement with radiofrequency energy delivered at selected depths. The system creates a fractional pattern of treatment points while leaving surrounding tissue between the points.
How Does RF Fractional Microneedling Work?
The system uses a handpiece and a compatible cartridge selected for the treatment plan. The clinician sets the needle depth and RF parameters, positions the handpiece on the skin and delivers controlled pulses according to the manufacturer instructions.
Review the skin, indication, contraindications and treatment area.
Choose a documented needle depth suited to the treatment plan.
Apply controlled energy through the selected fractional pattern.
Record settings, provide aftercare and evaluate the response.
What Does “Fractional” Mean?
Fractional treatment means that energy is delivered through multiple separated treatment points rather than across the entire surface as one continuous field.
This allows the clinician to create a controlled treatment pattern while leaving surrounding areas between the treatment points. Fractional does not mean risk-free and does not guarantee a specific clinical outcome.
Core Components of a Professional System
The generator should provide clear and repeatable energy settings with a documented delivery method.
Adjustable depth control helps the practitioner adapt treatment to the area and intended indication.
Clinics should compare needle count, treatment footprint, sterility, traceability and disposal requirements.
A clear interface can simplify parameter review, training, treatment records and routine operation.
Technical Specifications Clinics Should Compare
Specifications are useful only when they are linked to intended use, operating instructions and professional training. The following values describe a reference configuration and should be confirmed in the final technical sheet.
| RF delivery | Controlled bipolar RF in the reference configuration. |
|---|---|
| RF frequency | 4 MHz. |
| Needle depth | 0.5–7.0 mm with 0.1 mm adjustment steps. |
| RF output | Reference range listed as 1–50 W. Confirm the final output range and operating modes in the model-specific documentation. |
| Cartridge options | 12P, 24P, 40P and Nano reference options. |
| Interface | 10.4-inch touchscreen in the reference configuration. |
| Warranty | Two-year reference commercial configuration. Verify coverage, exclusions and service response before ordering. |
Common Professional Applications
RF microneedling is commonly evaluated by aesthetic practices for procedures targeting the appearance of uneven texture, enlarged pores, acne-scar appearance, fine lines and selected firmness concerns.
- Texture and pore appearance: A planned fractional pattern can be created across suitable areas.
- Acne-scar appearance: Treatment planning should reflect scar type, skin assessment, risk factors and realistic outcomes.
- Fine lines and firmness concerns: Energy and depth should be selected conservatively and documented.
- Personalised treatment planning: Parameter control should be combined with consultation, photography and follow-up.
RF Microneedling vs. Fractional Laser
RF microneedling and fractional laser should not be treated as interchangeable technologies. They use different energy sources and require separate clinical evaluation.
| Comparison | RF fractional microneedling | Fractional laser |
|---|---|---|
| Primary energy | Radiofrequency delivered through a microneedle handpiece. | Laser light delivered at a selected wavelength and pulse configuration. |
| Depth control | Mechanical needle depth is an explicit handpiece parameter. | Optical penetration depends on the laser platform and settings. |
| Selection | Depends on skin assessment, indication and operator training. | Depends on wavelength, indication and operator training. |
Safety and Evidence-Based Use
Safety is part of the device specification
The U.S. FDA has communicated potential risks associated with certain uses of RF microneedling, including reports of burns, scarring, fat loss, disfigurement and nerve damage.
RF microneedling should be performed only by appropriately trained professionals using the correct indications, parameters, hygiene procedures and aftercare.
Before purchasing a machine, ask for the instructions for use, intended-use statement, local compliance documents, training pathway, cartridge information and service process.
How to Evaluate an RF Fractional Microneedling Machine
- Clearly documented intended use
- Repeatable depth and RF control
- Traceable compatible cartridges
- Instructions and operator training
- Warranty and service process
- Compliance documents for your market
- Technical support and maintenance
- Shipping and total operating costs
Frequently Asked Questions
What is an RF fractional microneedling machine?
It is a professional aesthetic platform that combines controlled microneedle placement with radiofrequency energy delivered at selected depths.
How is RF microneedling different from standard microneedling?
Standard microneedling relies mainly on mechanical micro-injury. RF microneedling adds controlled radiofrequency energy at the selected needle depth.
What depth range should a professional RF microneedling machine offer?
The reference configuration specifies 0.5–7.0 mm with 0.1 mm adjustment steps. The manufacturer instructions remain decisive.
What cartridge options can clinics compare?
Clinics can compare needle count, treatment footprint, depth control, sterility and traceability. Reference options include 12P, 24P, 40P and Nano.
Is RF microneedling safe?
Safety depends on the device, intended use, operator training, patient selection, parameters, hygiene and aftercare.
How often should RF microneedling treatments be performed?
There is no universal schedule. A qualified professional should set treatment timing after assessment and according to the device instructions.
Is RF microneedling a replacement for fractional laser?
No. RF microneedling and fractional laser use different energy sources and tissue interactions.
Authoritative References
Review a Professional RF Microneedling Platform
Check the technical configuration, accessories, training and support available for your clinic.
