What Does a Cryo Chiller Machine Do During Laser Treatments?
A cryo chiller delivers a controlled stream of cold air to the skin during selected laser procedures. Here is how it works, where it may fit into a treatment workflow, and what clinicians should not assume from a temperature specification.

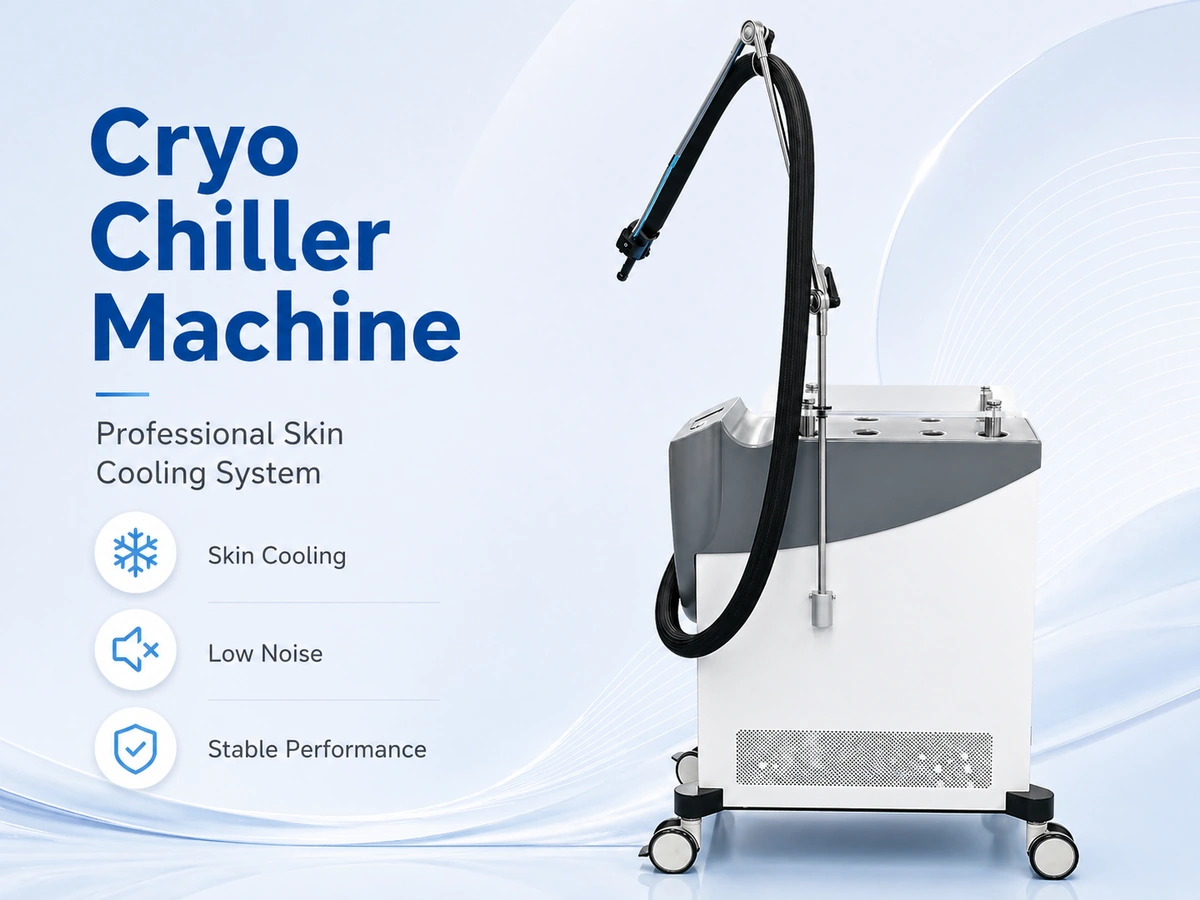

A non-contact cooling unit directs chilled air toward a selected treatment area. Use and settings should follow the instructions for both devices.
What is a cryo chiller machine?
A cryo chiller for laser work is a skin-cooling accessory that channels refrigerated air through a hose and nozzle toward a selected area. Because the cooling stream is delivered without a cooling plate touching the skin, it is commonly described as non-contact cold-air cooling or forced-air cooling.
It is separate from the laser itself. The laser produces the treatment energy; the chiller supplies an airflow that can be used alongside it when the procedure protocol calls for cooling. This also makes it different from cryolipolysis, which uses controlled cooling for a different treatment purpose.
How does cold-air cooling work?
The system cools air and moves it through a hose to the treatment site. The moving air exchanges heat with the skin surface. In practical terms, this can help manage surface warmth and may make selected procedures more comfortable. The magnitude and clinical relevance of the effect depend on the device, airflow, nozzle position, exposure, treatment parameters, anatomical site and patient response.
Cold-air cooling is one of several approaches used around laser procedures. Contact cooling, chilled gel and cryogen spray work differently, and each has its own operating instructions and limitations. A clinician should select a method that is appropriate for the laser platform and indication rather than treating all cooling systems as interchangeable.
Where can a cryo chiller fit in a laser workflow?
Depending on the treatment protocol, a clinician may apply airflow before, during or after laser delivery. The purpose and timing are procedure-specific; there is no universal distance, duration or airflow level that applies to every laser and every patient.
| Workflow stage | Possible role of cooling | Clinical point |
|---|---|---|
| Before pulses | Condition the surface area before energy delivery, if the protocol specifies it. | Use the laser and chiller instructions to set timing and airflow; avoid assuming that longer cooling is better. |
| During treatment | Direct airflow at the treatment site between or around pulses, where compatible with the procedure. | Keep the treatment field visible and the nozzle position consistent with the device instructions. |
| After pulses | Provide short-term surface cooling after energy delivery when appropriate. | Assess the skin response and follow the procedure-specific aftercare plan. |
The key is coordination: the cooling method should support the treatment plan without obscuring the field, disrupting the handpiece technique or substituting for appropriate laser settings and patient assessment.
What a cryo chiller can—and cannot—do
Potential role
- Provide non-contact airflow to a selected treatment area.
- Support surface heat management when cold-air cooling is appropriate for the procedure.
- Offer an additional comfort measure for some patients and treatment types.
- Allow cooling to be used before, during or after treatment according to a defined protocol.
It does not replace clinical controls
- It does not set or regulate the laser’s wavelength, fluence, pulse duration or spot size.
- It does not make an unsuitable laser parameter safe, and it cannot guarantee that burns, pigmentary changes or other adverse effects will not occur.
- It should not be assumed to be compatible with every laser or every treatment indication.
Cold-air cooling has been studied as a comfort measure, but results are procedure-dependent. An early clinical report found that most participants preferred cold air, while a randomized study of Q-switched Nd:YAG treatment for acquired bilateral nevus-of-Ota-like macules reported more post-inflammatory hyperpigmentation on the cooled side in that specific protocol. The latter finding should not be generalized to all lasers; it does show why cooling should not be presented as a universal protective measure.
Example: Cryo 6 chiller specifications
The manufacturer’s specification sheet for the referenced chiller lists the following points. Confirm the exact configuration of the unit being purchased and the applicable local power supply before installation.
| Specification | Listed value | How to interpret it |
|---|---|---|
| Minimum outlet-air temperature | −35°C | Specified under ambient conditions of 25°C and 30% relative humidity; this is an outlet-air value, not a skin-temperature target. |
| Airflow control | 9 levels | Allows the operator to select an airflow level according to device instructions and the treatment protocol. |
| Rated power | 1200 W | Confirm the unit’s electrical requirements and local supply before use. |
| Power supply | 110 V or 220 V configuration | Verify the supplied configuration on the product label before connection. |
| Maximum noise level | ≤65 dB | Manufacturer-listed specification; actual sound can vary with operating conditions. |
For product configuration and current details, see the Cryo 6 Chiller Skin Cooling Machine product page.
Choosing and using a chiller responsibly
Before adding a chiller to a treatment room, check its compatibility with the laser system, hose and nozzle design, airflow controls, service requirements and the clinic’s intended procedures. Train staff on setup and inspection, keep the air outlet and hose unobstructed, and document the cooling protocol used for each treatment type.
When evaluating a machine, distinguish the unit’s air-temperature specification from the temperature experienced by the patient. Review the operating manual and use clinical evidence that matches the laser, indication and cooling approach under consideration.
Frequently asked questions
What does a cryo chiller machine do during laser treatments?
It delivers a stream of chilled air to the treatment area as an adjunct to a laser procedure. Depending on the device, treatment and protocol, this non-contact cooling may help manage surface heat and patient discomfort. It does not replace correct laser settings, operator training or clinical assessment.
Does a -35°C outlet temperature mean the skin reaches -35°C?
No. The quoted value refers to the machine’s outlet air under stated test conditions, not the temperature reached by skin. Skin temperature depends on airflow, distance, exposure time, ambient conditions, tissue characteristics and the treatment protocol.
When is cold-air cooling used around a laser treatment?
A clinician may use cooling before, during or after laser delivery when it is appropriate for the specific procedure and device instructions. Timing, airflow and positioning should follow the laser and chiller manufacturers’ instructions and the clinic’s protocol.
Can a cryo chiller prevent burns or post-inflammatory hyperpigmentation?
No cooling system can guarantee prevention of burns, pigmentary change or other adverse effects. Outcomes depend on the laser, settings, patient factors, technique and aftercare. Published findings also show that the effect of cooling can vary by procedure.
Can one cryo chiller be used with every laser?
Compatibility should be checked for each laser platform, handpiece and treatment protocol. Confirm the instructions for both devices before use; do not assume that a chiller marketed for one modality is appropriate for every laser procedure.
References
- Das A, Sarda A, De A. “Cooling Devices in Laser therapy.” Journal of Cutaneous and Aesthetic Surgery. 2016;9(4):215–219. Review of cooling methods and clinical considerations.
- Raulin C, Greve B, Hammes S. “Cold air in laser therapy: first experiences with a new cooling system.” Lasers in Surgery and Medicine. 2000;27(5):404–410. PubMed record.
- Manuskiatti W, et al. “Effect of cold air cooling on the incidence of postinflammatory hyperpigmentation after Q-switched Nd:YAG laser treatment of acquired bilateral nevus of Ota like macules.” Archives of Dermatology. 2007;143(9):1139–1143. PubMed record.
This article is a general technical overview. Device specifications are manufacturer-provided and may vary by configuration. Clinical decisions should follow the laser and cooling-device instructions and the treating professional’s assessment.
