Why RF microneedling depth matters
RF microneedling combines controlled needle penetration with radiofrequency energy. The needles create fractional microchannels, while RF energy is delivered at a selected tissue level. Changing the needle depth changes the anatomical level reached by the treatment, so the setting must be chosen according to the treatment zone, local tissue thickness, treatment objective, cartridge design and patient-specific factors.
A common mistake is to assume that a deeper setting automatically produces a stronger or better result. It does not. A setting that is appropriate for thicker abdominal tissue may be unsuitable for thin facial skin. Likewise, a superficial setting can still create a meaningful treatment response when it is combined with the appropriate RF power, pulse characteristics, passes and coverage.
It should reflect tissue thickness and the intended treatment level—not a universal chart.
Needle depth and RF output work together, but they are not interchangeable settings.
The upper range is generally associated with selected thicker body areas and trained use.
Important: The ranges below are educational categories, not treatment prescriptions. Final settings must follow the device manual, formal training, professional assessment, local scope-of-practice rules and the patient's anatomy and medical history.
RF microneedling depth ranges: 0.5 mm to 7 mm
Published RF microneedling literature often discusses adjustable depths in the approximately 0.5–3.5 mm range for facial dermatologic applications. Professional face-and-body platforms may extend deeper, including up to 7.0 mm, to support selected body protocols. The following framework explains how the range is commonly interpreted without presenting it as a fixed protocol.
mm
Superficial treatment range
Often considered when working with thinner or more delicate zones and superficial skin-quality goals. Even at a shallow setting, practitioners must account for RF power, pulse duration, repeated passes and overlapping coverage. Thin areas require conservative planning and careful endpoint observation.
mm
Intermediate facial range
This range may be considered across selected facial areas where the goal involves dermal remodeling, texture or scar-focused treatment. It is not equally appropriate for every part of the face; forehead, periocular, perioral and cheek tissue can differ substantially.
mm
Deeper dermal and selected subdermal range
Experienced providers may consider deeper settings for thicker facial zones, selected scars, the lower face or other areas after assessing anatomy. Literature describing facial RF microneedling frequently reaches an upper adjustable range around 3.5 mm, although device design and protocols vary.
mm
Deep treatment range for selected body tissue
Depths above common facial ranges are generally associated with thicker body tissue. Potential professional applications may include selected abdomen, thigh, arm or stretch-mark protocols, depending on the platform and training. These depths should not be copied into facial treatment settings.
mm
Maximum-depth body range
The upper end of a 0.5–7.0 mm system is intended for carefully selected thicker body areas where the device is approved or permitted for such use. It requires advanced anatomical understanding, correct cartridge selection, controlled energy and strict adherence to manufacturer guidance.
| Depth band | General interpretation | Possible professional context | Primary caution |
|---|---|---|---|
| 0.5–1.0 mm | Superficial | Thin or delicate facial zones; superficial skin-quality planning | Shallow does not mean risk-free; cumulative energy still matters |
| 1.0–2.0 mm | Intermediate | Selected facial texture, pores or scar-focused protocols | Facial thickness changes by zone and patient |
| 2.0–3.5 mm | Deeper facial / selected tissue | Thicker facial areas or deeper remodeling objectives | Requires anatomical assessment and device-specific training |
| 4.0–5.0 mm | Deep body | Selected abdomen, arms, thighs or stretch-mark areas | Not a default facial range |
| 6.0–7.0 mm | Maximum body range | Selected thicker body tissue under trained professional protocols | Use only where supported by the manual, training and local rules |
Why facial and body depths should be separated
The face is not a uniform surface. Tissue thickness and underlying anatomy differ across the forehead, temples, periocular region, cheeks, upper lip, jawline and neck. A responsible protocol therefore maps the face into zones rather than assigning one depth to the entire treatment area.
Body areas also vary. The abdomen, upper arms and thighs may have thicker tissue than facial zones, but thickness alone does not determine the correct depth. Skin laxity, scar or stretch-mark characteristics, treatment history, cartridge type and device design all influence planning.
- Thin facial zones: generally demand conservative depth and energy selection.
- Cheeks and lower face: may allow different settings after palpation and assessment.
- Neck: should not automatically receive the same parameters as the jawline or cheek.
- Body: deeper settings may be available, but only where the device and professional protocol support them.
Depth is only one part of the RF treatment equation
Two treatments performed at the same nominal depth can produce different tissue effects. RF output, pulse duration, pulse mode, electrode design, needle insulation, tissue contact, treatment speed, number of passes and overlap can all change the total energy delivered.
Insulated vs non-insulated needles
Insulated needles typically concentrate RF delivery around exposed portions of the needle, while non-insulated needles can distribute energy along a larger conductive section. Because energy distribution differs, a depth value should never be interpreted without knowing the cartridge design.
Actual penetration may differ from the displayed setting
Tissue compression, skin tension, handpiece angle and full cartridge contact can affect practical penetration. The displayed number is an equipment setting; consistent technique is necessary to translate that setting into repeatable treatment delivery.
How cartridge selection relates to depth
Pin count influences treatment footprint and coverage, but it does not replace depth selection. A smaller cartridge may offer more practical access to narrow areas, while a higher pin count may increase coverage across broader zones. Nano-style tips usually work differently from penetrating needle cartridges and should be understood according to the specific system manual.
- 12-pin: useful for controlled coverage and smaller or contoured areas.
- 24-pin: a versatile option for many facial and localized protocols.
- 40-pin: broader coverage for larger treatment zones where appropriate.
- Nano: a non-identical treatment category; do not assume the same depth logic as penetrating needles.
A professional framework for selecting depth
Instead of beginning with a number, begin with the treatment objective and anatomy. A documented planning process improves consistency and makes it easier to evaluate results over a treatment course.
- Screen the patient. Review medical history, medications, prior procedures, active skin conditions, infection risk, healing history and relevant contraindications.
- Define the target. Clarify whether the priority is superficial texture, a scar-focused program, skin-quality improvement or a selected body concern.
- Map the treatment zone. Assess tissue thickness and important anatomical differences instead of using one setting everywhere.
- Select the cartridge and depth together. Confirm needle type, pin count, insulation pattern and supported depth range.
- Balance depth with energy. Choose RF output, pulse mode, pass count and overlap according to training and device instructions.
- Observe endpoints and document. Monitor tissue response, comfort and uniformity; record settings and standardized photographs for future comparison.
Safety reminder: RF microneedling is a professional procedure. Avoid treating over active infection, open wounds or uncontrolled inflammation, and follow applicable guidance for pregnancy, implanted electronic devices, relevant medical conditions and all other contraindications listed by the manufacturer.
Equipment selection
Look beyond maximum depth

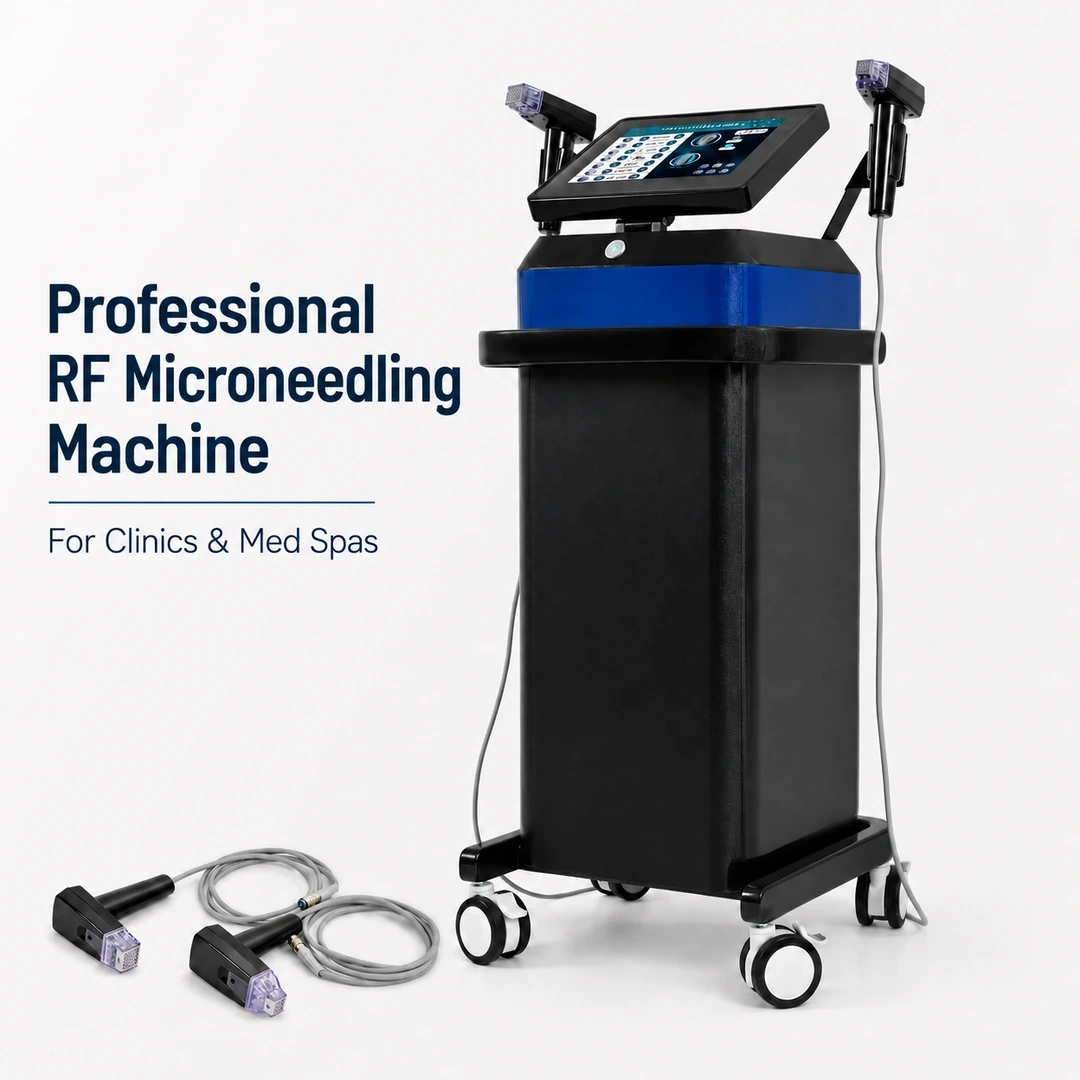

A useful professional system should combine a suitable depth range with precise adjustment, stable RF output, appropriate cartridges, clear controls, training and dependable after-sales support. Emmalaser's system provides an adjustable 0.5–7.0 mm range for professional face-and-body planning.
View the professional RF microneedling machineFrequently asked questions
What is the best RF microneedling depth for the face?
There is no single best depth for the entire face. Providers should divide the face into anatomical zones and select settings according to tissue thickness, treatment objective, cartridge design, RF parameters, training and the device manual.
Is 7 mm RF microneedling suitable for facial treatment?
A 7 mm setting is not a routine facial depth. On systems that offer this range, it is generally associated with selected thicker body areas and should only be used within supported professional protocols.
Does deeper RF microneedling produce better results?
No. Greater depth is not automatically more effective. Results and risk depend on matching depth, RF energy, pulse settings, cartridge design, coverage and treatment goals to the patient's anatomy.
Can one depth be used across the whole treatment area?
Usually, a zone-based approach is more appropriate because tissue thickness changes across the face and body. Professional assessment and consistent documentation are essential.
How important is 0.1 mm depth adjustment?
Fine adjustment can help trained operators adapt the selected depth between treatment zones. It does not replace anatomical knowledge, device training or correct RF energy selection.
